Original Youngtown 12888 Chime Melody Pendulum Clock Movement with 2 Sets of Han…

Price: $25.99
(as of Jul 03, 2025 21:18:54 UTC – Details)

Features:

Kindly note: the product has 3 hands. The second hand has a brass cap, instead of the minute nut. For the 8th tip in the instruction, lightly screw minute nut in place can mean that if the product has the second hand, this minute nut or brass cap needn’t. Please note that our package does not include the minute nut.

Easy and simple design.
Suitable for repairing, replacing or making a clock.
Material: plastic and aluminum.
Accuracy Within ±30seconds deviation each month (in normal temperature).
Second hand motion: Step.
Battery: one 1.5V Carbon-zinc batteries only,not included.
Please DO NOT USE Alkaline battery,Rechargeable batteries,they will damage the movement.

Max Pendulum Swing: 26°
Max Pendulum Weight: 40g
Max Pendulum Length: 35cm

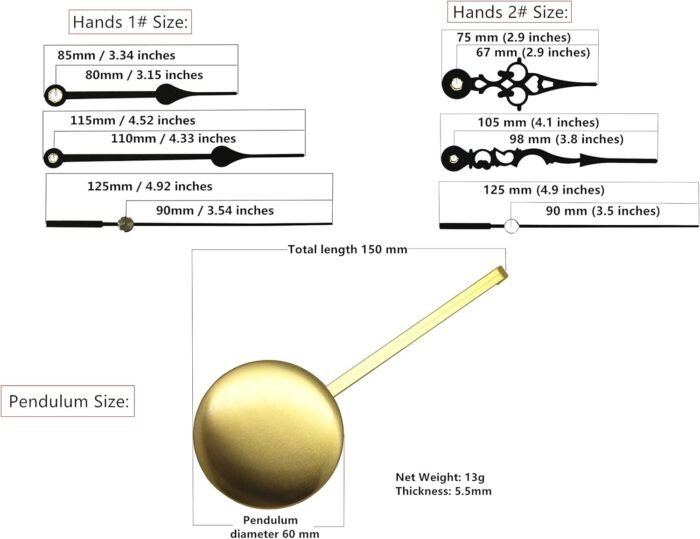

Dimensions:

Case size: approx. 55 x 110 x 16 mm (2.2 x 4.3 x 0.65 inches)

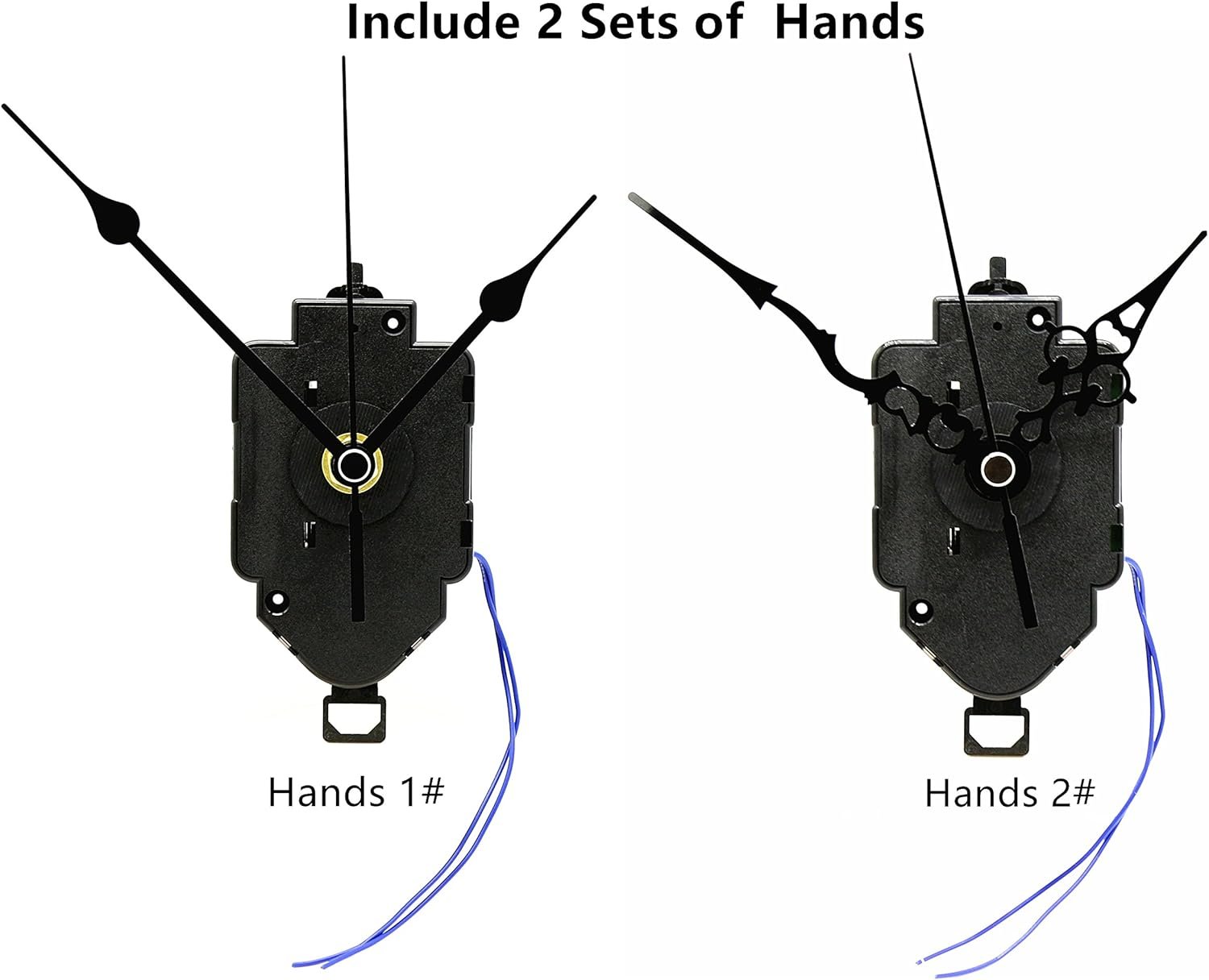

Hand style 1#
Total hour hand length: approx. 85 mm (3.34 inches)
Total minute hand length: approx. 115 mm (4.52 inches)
Total second hand length: approx. 125 mm (4.92 inches)

Hand style 2#
Total hour hand length: approx. 75 mm (2.9 inches)
Total minute hand length: approx. 105 mm (4.1 inches)
Total second hand length: approx. 125 mm (4.92 inches)

Metal Pendulum
Net Weight : 13g
Total Length : 150 mm
Pendulum diameter : 60 mm
Thickness: 5.5 mm

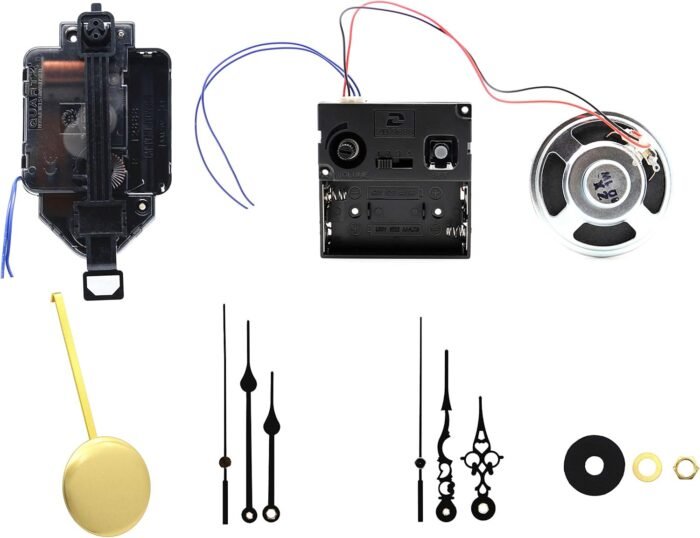

Package included:

1 x Quartz Pendulum Clock Movement
1 x Chimes Box
1 x Horn
2 x Second hand
2 x Minute hand
2 x Hour hand
1 X Plastic washer
1 X Brass washer
1 X Brass nut
1 X Brass pendulum

.The ideal replacement parts for your treasured clock,Design and make your own pendulum clock.
.Chiming pendulum movement plays the Westminster melody on the hour,automatically silences the chimes after 9:00 pm until 6:00 am.
.Pendulum type movement, suitable for 9-13 mm ( 23/64 – 1/2 inch ) thickness clock panel;INSTRUCTIONS – Included along with the movements.
.Total shaft length: 23.5mm ( 59/64 Inch),thread length: 16mm ( 5/8 Inch).Max Pendulum Swing: 26°;Max Pendulum Weight: 40g ; Max Pendulum Length: 35cm.
.This clock doesn’t contain hook, they can’t hang directly; If the handle is too long, you can snip them as you want according to the size of the clock panel.
